Tannoy 15-inch Monitor Gold Speaker

The Tannoy 15-inch Monitor Gold is a legendary speaker driver, celebrated for its unique engineering and classic sonic performance.

📜 History of the 15" Tannoy Monitor Gold

The 15-inch Tannoy Monitor Gold (factory model name LSU/HF/15/8) was introduced in 1967 as the successor to the earlier Monitor Red series.¹ It represents the pinnacle of Tannoy’s classic Dual Concentric design, which itself was invented in 1947.² The Monitor Gold (MG) was manufactured through the 1970s and quickly cemented its place as an industry standard. It gained fame not just in high-end domestic hi-fi but, crucially, in professional recording and broadcast environments, including legendary studios like Abbey Road.³ The Monitor Gold featured an Alnico magnet assembly—the source of its highly regarded musicality—and had a power handling of 60 Watts RMS, offering a balance of high efficiency and improved bass extension over its predecessors.⁴

🏷️ Different Versions Through the Years

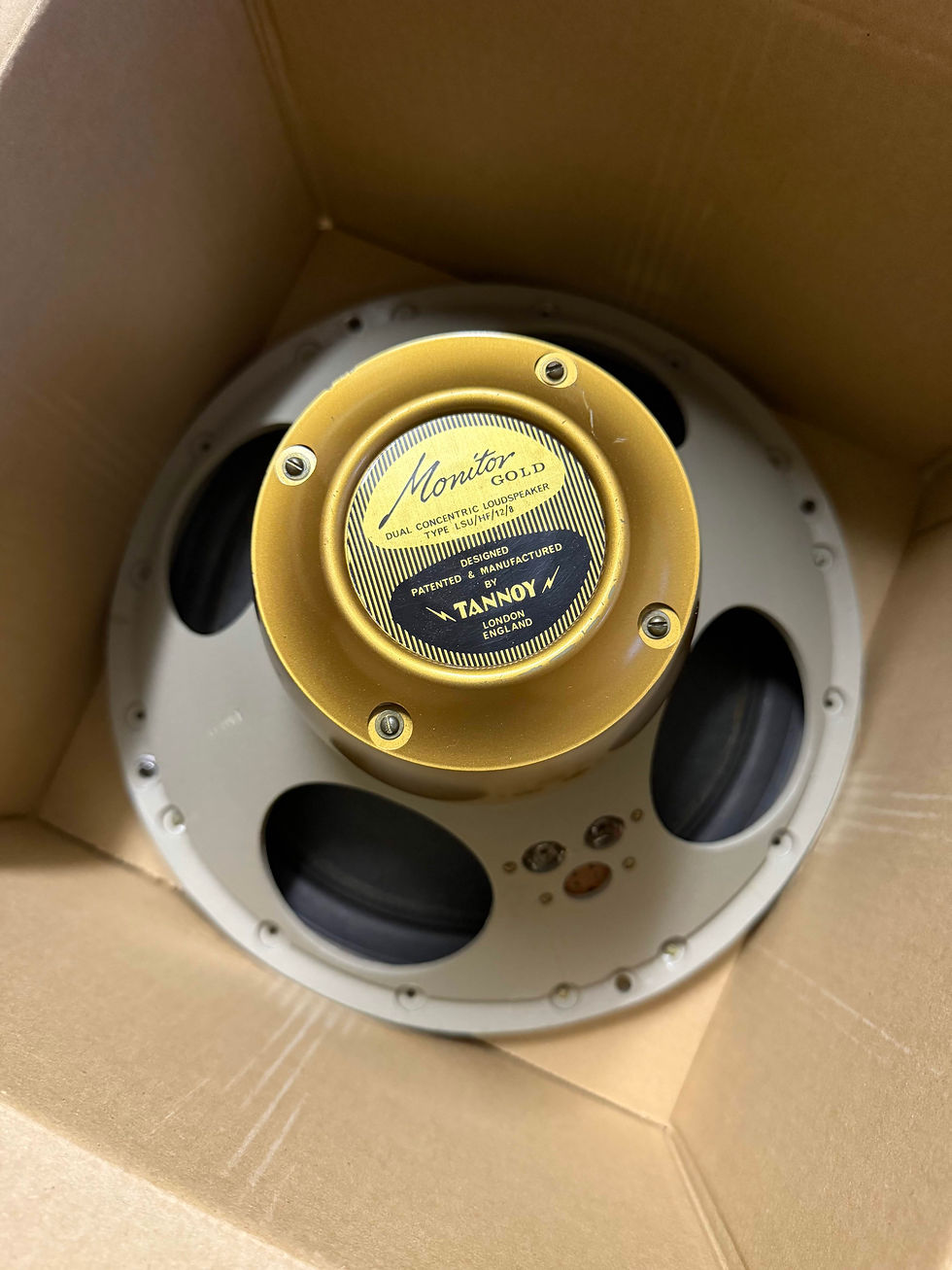

The Monitor Gold designation itself refers to the internal driver unit, which featured a grey cast chassis and a distinct gold-colored magnet cover.⁵ The driver was consistent, but its performance varied significantly based on the cabinet enclosure it was placed in, often factory-built by Tannoy. Common factory cabinets that housed the 15-inch MG included the large, horn-loaded GRF (Guy R. Fountain, the company founder) and the Autograph (a massive corner horn).⁶ Later, the more conventional reflex-loaded Lancaster and York cabinets were also popular. The Monitor Gold was eventually succeeded by the High-Performance Dual Concentric (HPD) series (e.g., HPD-385) in 1974, which used different cone materials and ferrite magnets, leading to a different sound signature.

⚙️ Function and Dual Concentric Design

The 15" Tannoy Monitor Gold is a full-range, two-way loudspeaker driver unit.⁷ Its defining feature is the Dual Concentric design, where the high-frequency compression driver (tweeter) is physically mounted behind the low-frequency driver (woofer) and fires through the center of the woofer’s magnet assembly, using the woofer's cone as a wave guide.⁸ This creates a true point-source radiator, meaning all sound frequencies emanate from a single point in space.⁹ The result is exceptionally coherent sound and precise stereo imaging, often described as having incredible "speed" and dynamics.

🔗 Placement in an Audio Setup

The 15" Monitor Gold is designed for a high-efficiency, passive audio setup. As a driver unit, it must be mounted into a custom or factory-designed enclosure (cabinet). It functions as the final link in the audio chain, receiving the amplified signal from a power amplifier.¹¹ Due to its high sensitivity (around $92 \text{ dB}$ for $1 \text{ Watt}$ at $1 \text{ meter}$), it does not require massive amounts of power and is famously compatible with low-power, high-quality tube (valve) amplifiers—such as vintage Leak, Radford, or Marantz tube amps—a pairing prized by audiophiles for delivering a rich, musical sound.

🎶 What It Does: The Sound Signature

The Monitor Gold is revered for its natural, non-fatiguing, and powerful sound. The large 15-inch woofer moves substantial air, providing deep, dynamic, and tactile bass, while the Alnico magnet structure contributes to a lush, colorful, and articulate midrange.¹² The point-source design is responsible for an exceptionally stable and accurate stereo image with an enveloping "three-dimensional" soundstage.¹³ The driver includes an adjustable crossover network, allowing the user to fine-tune the high-frequency response ("Energy" and "Roll-Off" controls) to compensate for different cabinet designs and room acoustics.

💻 Modern Uses and Equivalents

Today, the vintage 15" Monitor Gold drivers are highly sought after for use in high-end custom-built horn or reflex cabinets for home audio. Tannoy itself produces modern iterations and spiritual successors in its Prestige and Super Gold Monitor (SGM) series (e.g., the current SGM 15), which use refined Dual Concentric technology with modern materials and magnets. Other modern high-end equivalents attempting to capture a similar point-source, high-efficiency sound include large coaxial drivers from companies like TAD (Technical Audio Devices) or some high-end speaker systems from companies specializing in horn-loaded or open-baffle designs.

💰 Current Value in Today's Dollars

The value of the 15-inch Tannoy Monitor Gold is extremely high and varies based on the unit's condition, originality of the cones and crossovers, and whether they are being sold as bare drivers or housed in original Tannoy cabinets. A pair of bare, working 15" Monitor Gold drivers (LSU/HF/15/8) with original crossovers can currently be worth between $2,500 and $5,000+ USD. A pair of the same drivers housed in a desirable original factory cabinet (like the GRF or Autograph) that is in excellent condition can sell for significantly more, often ranging from $8,000 to over $15,000 USD depending on the specific model and restoration status.internal transformers and faceplate are major factors in determining the final price.
